Kick Brace for Concrete Forms

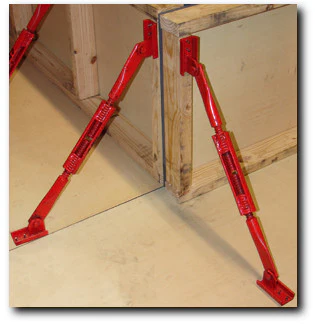

The Ellis Kick Brace is a heavy-duty adjustable support designed for the rapid alignment of edge forms, drop beam sides, and low wall forms. It features 180-degree swiveling end plates that allow for bracing at any angle and 1" self-cleaning coil threads to ensure smooth operation even in rugged job site conditions. With a 2,800 lb load capacity and a simple nail-on installation, this tool provides a stable and precise solution for maintaining perfect form positioning throughout a concrete pour.
Specifications
Demonstration Video
Specifications:
The Ellis MFG Kick Braces can be attached quickly by nailing two nails in each end plate . The ends swivel 180 degrees freely to allow brace to be placed at any angle. Use rebar, screw driver, etc. to quickly adjusts the turnbuckle to lengthen or shorten the Kick Brace. 1" Diameter self-cleaning coil threads help protect and prolong the performance of the turnbuckle. Full length welds insure strength when bracing. Weight is 10.5 lbs. each. 29.5" closed length with 6"Ā of adjustment.Ā Will support 2,800 lbs with 2.5/1 factor of safety.Ā
Ā
Detailed Product Drawings
