Pivoting Top For Light Duty Steel Shores

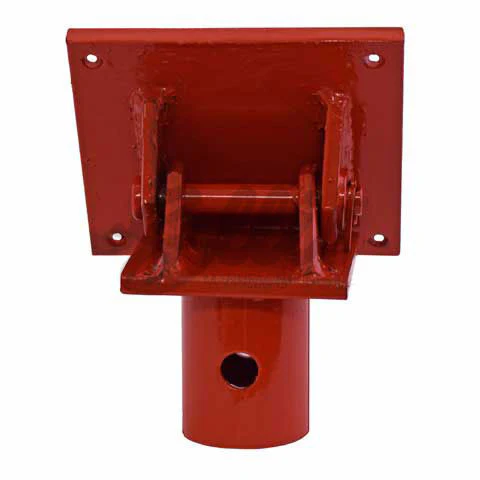

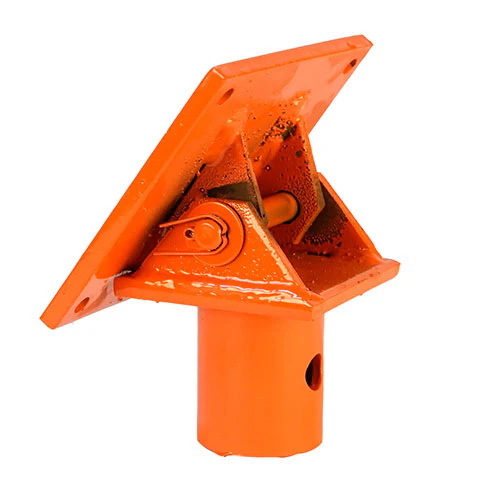

The Pivoting Flat Plate Top is intended to secure the Ellis Light Duty Steel Shore to the beam being supported and will pivot up to 45 degrees.
Specifications
The Ellis Pivoting Flat Plate Top for Light Duty Steel Shores is perfect for supporting loads that are at an angle. It comes with 4 mounting holes and a 3/8" thickness for maximum support. It will pivot a maximum of 45 degrees in 2 directions.
Specifications
- FOR USE WITH LIGHT DUTY STEEL SHORES ONLY (with Ellis Thrust Bearings and without)
- Plate Thickness: 3/8"
- Plate size: 6" X 6"
- Plate Mounting Holes: (4) 3/8" Diameter Holes.
- Range of Pivot: 45 degrees
Ā
*Adding a pivoting top to a Steel Shore can significantly reduce its Safe Load Rating.Ā Consult with a Professional Engineer for proper use.
Product Drawings
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Pivoting Top For Light Duty Steel Shores
Pivoting Top For Light Duty Steel Shores
The Pivoting Flat Plate Top is intended to secure the Ellis Light Duty Steel Shore to the beam being supported and will pivot up to 45 degrees.
Specifications
The Ellis Pivoting Flat Plate Top for Light Duty Steel Shores is perfect for supporting loads that are at an angle. It comes with 4 mounting holes and a 3/8" thickness for maximum support. It will pivot a maximum of 45 degrees in 2 directions.
Specifications
- FOR USE WITH LIGHT DUTY STEEL SHORES ONLY (with Ellis Thrust Bearings and without)
- Plate Thickness: 3/8"
- Plate size: 6" X 6"
- Plate Mounting Holes: (4) 3/8" Diameter Holes.
- Range of Pivot: 45 degrees
Ā
*Adding a pivoting top to a Steel Shore can significantly reduce its Safe Load Rating.Ā Consult with a Professional Engineer for proper use.
