4x4 Red Head

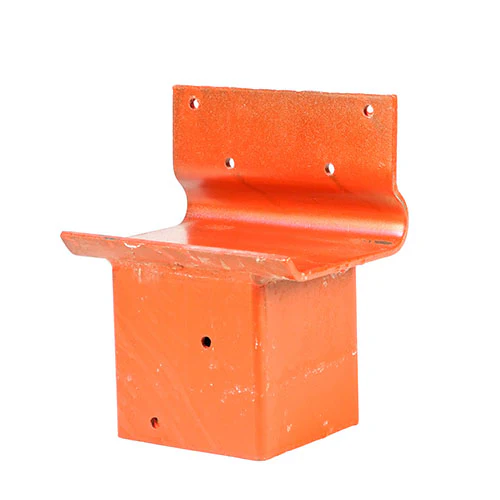

Ellis Manufacturing Co. 4x4 Red Head is designed to accept 4x4 Ellis Shore in bottom and 4x4 or 4x6 purlin spliced together at the top. The design of the Ellis Red Head ensures speedy teardown. Simply lift the bottom of the Ellis shore to pry the nails in the purlin out, as indicated below.
Specifications
Here is the simplified way to do two jobs at once in the Ellis System: Nailed two adjoining ends of two purlins, it is a splicer… with a shore slipped into the bottom part, it is a shore holder! Thus L-shaped assemblies of purlins and shores can be extended to any desired length, and a shore supports at the exact center of each joint.
Demonstration Video
4x4 U-HEAD SPECIFICATIONS
- MATERIAL: 3/16" STEEL
- WIDTH: 3-3/4" (inside diameter)
- SIZE OF NAIL HOLES:Â .25" Dia.
