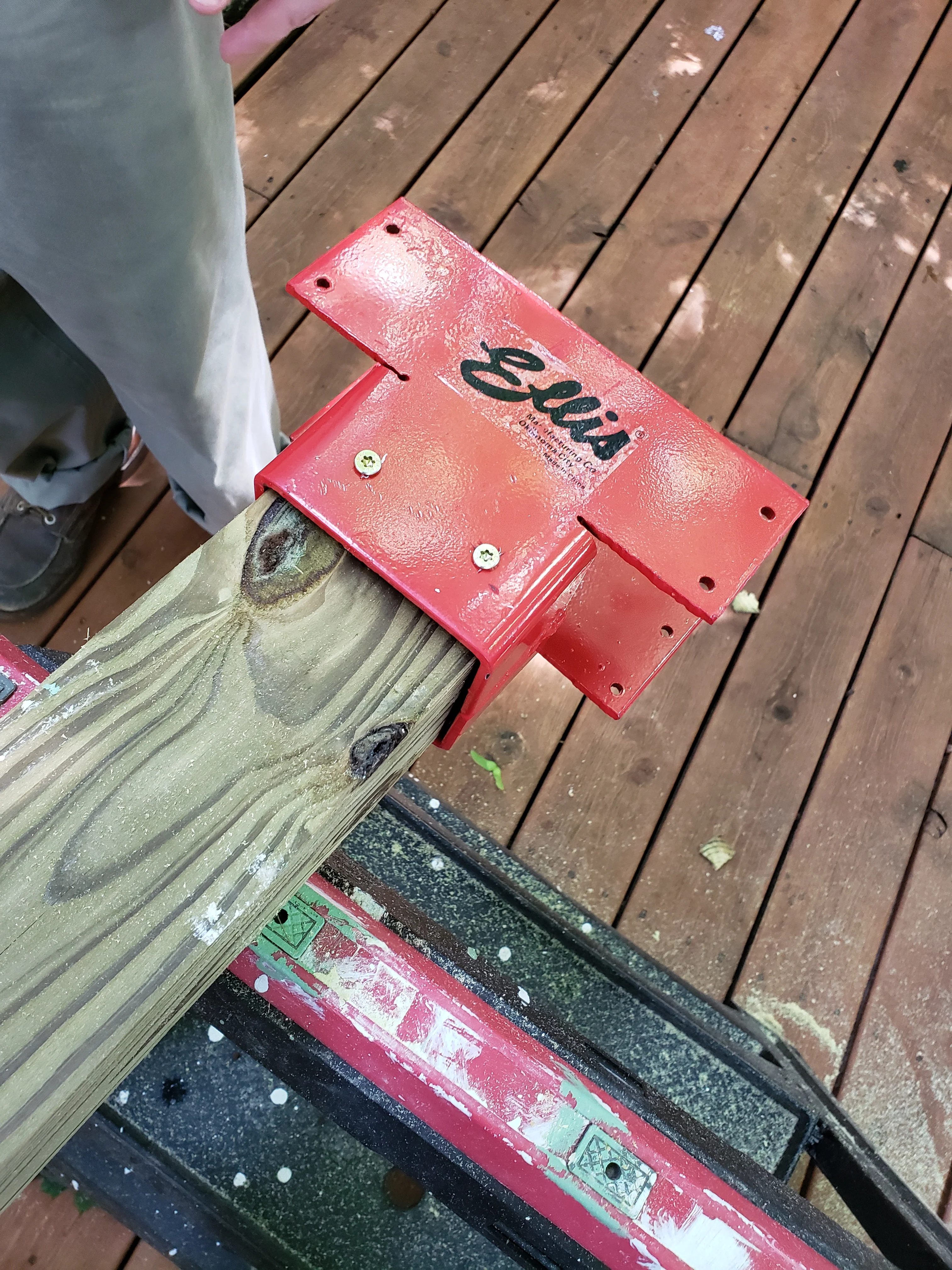

Ensure a secure, stable connection between your purlins and shores with the Ellis Purlin Splicer. Specifically engineered to join structural members, this heavy-duty steel sleeve accepts a 4x4 Ellis Shore at the base while securely splicing 4x4 or 4x6 purlins at the top. Beyond splicing, it serves as a rugged, reliable shore top for direct beam support, offering the versatility needed for complex shoring setups.

Specifications

2x4 PURLIN SPLICER SPECIFICATIONS



ITEM #: PS-2
MATERIAL: 3/16" STEEL
WIDTH: 1-5/8" I.D.



4x4 PURLIN SPLICER SPECIFICATIONS

ITEM #: PS-4
MATERIAL: 3/16” STEEL
WIDTH: 3-3/4" I.D.

6x6 PURLIN SPLICER SPECIFICATIONS

ITEM #: PS-6
MATERIAL: 3/16” STEEL
WIDTH: 5-3/4" I.D.

---

Product Drawings

PS-4
PS-6
