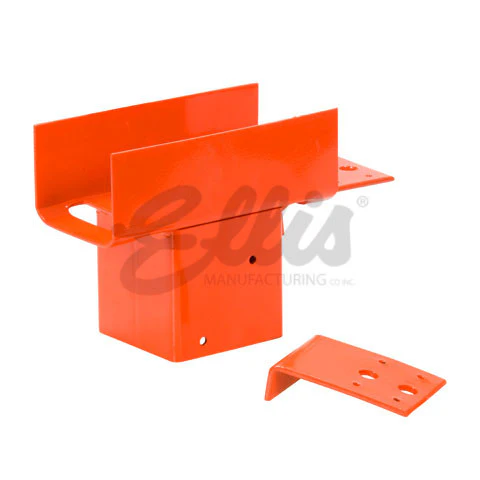

The Ellis Slotted Purlin Splicer quickly locks Ellis Shores to purlins.  Attach Slotted Purlin Splicer to Ellis Shore and Ellis Angle Plate to purlins, slide purlin angle plates into Ellis Slotted Purlin Splicer. Purlins are now spliced and unable to move laterally as the Ellis Angle plates hold them in place.

Specifications

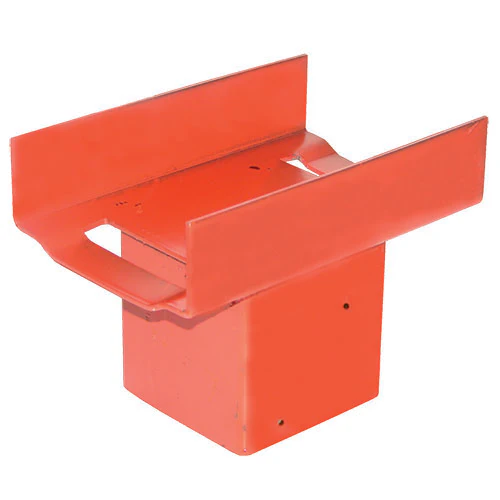

The Ellis Slotted Purlin Splicer splices purlins and receives shore! Here is the simplified way to do two jobs at once in shoring: Nailed to adjoining ends of two purlins, it is a splicer…with a shore slipped into the bottom part, it is a shore holder! The L-shaped assemblies of purlins and shores can be extended to any desired length, and a shore supports at the exact center of each joint.  When the Ellis Slotted Purlin Splicer is paired with the Ellis Angle Plates it locks the purlins to the shore and will not be able to pulled out laterally.

** Ellis Angle Plates sold separately.

---

Product Drawings

PS-4S
